RailStand HO scale Roller Test Stand
(Rollenprüfstand)
 |
 |
 |
RailStand roller test stand for the HO gauge Big Boy and all of HO scale engines, Unique Design and Patented, Accurate and TOP Quality, it's support AC/DC + Digital/Analogy,
Design and manufacture in Taiwan.
Included:
- 520mm anodized Aluminum alloy stand
- Bearing sets x 8pcs
- Overhead line for electric enginen of Pantograph x 1pc
- 64mm assemble track x 2pcs
- 3 connecters and cables
- Dimension 520mm(L) x 40mm(W) x 28(H)mm
- Net Weight 570g / Gross Weight 740g
- 3 years warranty
Functions:
- Supports DC / AC of model trains and Digital DCC or Analogy System.
- A removable overhead wire could be simple installed for testing the Pantograph of electric engine The overhead line set is inclusive.
- Easy to connect two RailStand to test ICE, TGB, EURO Star... high speed model trains.
- RailStand is able to put into the display Acrylic cover and wooden stand
to be a demo stand (addtional).
- RailStand can install in the Marklin or TRIX layout and be a programming track.
- Bearing sets (roller trolleys) also could testing the model train on the roller test stand or layout tracks.
- Aluminum slot base with the electricity conductor structures make easier to adjust or extend or remove the
bearing sets (roller trolleys).
- Assemble extend tracks are easy to adjust for Steam engine, Dieseal, Electric Model trains.
- Special AC power structure is moveable and easy to install or move out of stand.
PS1: wooden stand and model train are option not include
OPTIONS
- wooden stand
- Acrylic display case
- Extra bearing set (roller trolley)
- Assemble track 94mm, 64mm
- Extra track for connect two RailStand.
Functions::::
|
| 1. |
Supports DC / AC of model trains and DCC or Analogy System.
|
| 2. |
A removable overhead wire could be simple installed for testing the Pantograph of electric engine.
|
| 3. |
Easy to connect two RailStand to test ICE, TGB, EURO Star... high speed model trains.
|
| 4. |
RailStand are available put into the display Acrylic cover and wooden stand, you also able to install in the Marklin
and TRIX tracks layout.
|
| 5. |
Roller Trolleys also could testing the model train on the roller test stand
or layout tracks.
|
| 6. |
Able to install into the Marklin or TRIX model train layout and will be a programming track.
|
| 7. |
Aluminum slot base with the electricity conductor structures make easier to adjust/extend/remove the roller trolleys or
assemble extend tracks from the stand.
|
| 8. |
RailStand testing platform is designed to conduct electricity both ends,
Roller trolleys and Assemble extend tracks are also combinable and
electricity from both ends track.
|
| 9. |
Special AC power structure is moveable and easy install or move out of stand.
|
| |
Package:
|
| Item NO. HO3804
|
| Item NO. HO5208
 |
|
|
- 380mm anodized Aluminum alloy stand
- Bearing sets x 4pcs
- Antenna for electric engine of Pantograph x 1pc
- 94mm assemble track x 1pc
- 3 connectors with cable
- Dimension 380mm(L) x 40mm(W) x 28(H)mm
- Net Weight 380g / Gross Weight 520g
- 3 years warranty
|
|
- 520mm anodized Aluminum alloy stand
- Bearing sets x 8pcs
- Antenna for electric enginen of Pantograph x 1pc
- 64mm assemble track x 2pcs
- 3 connectors with cable
- Dimension 520mm(L) x 40mm(W) x 28(H)mm
- Net Weight 560g / Gross Weight 740g
- 3 years warranty
|
|
|
Price:
US$239 |
|
Price: US$329.0 |
| | |
| Video: |
 |
|
TRIX 2015 new Crocodile #22953 with ECos ESU command station run on the RailStand roller test stand and the power through the pantograph.
|
|
|
TRIX mobile station system, light mikado, RailStand roller test stand.
|
|
|
TRIX BR55 0-8-0 with digital sound and Smoke generator run on the RailStand HO3804 roller test stand.
|
| |
|

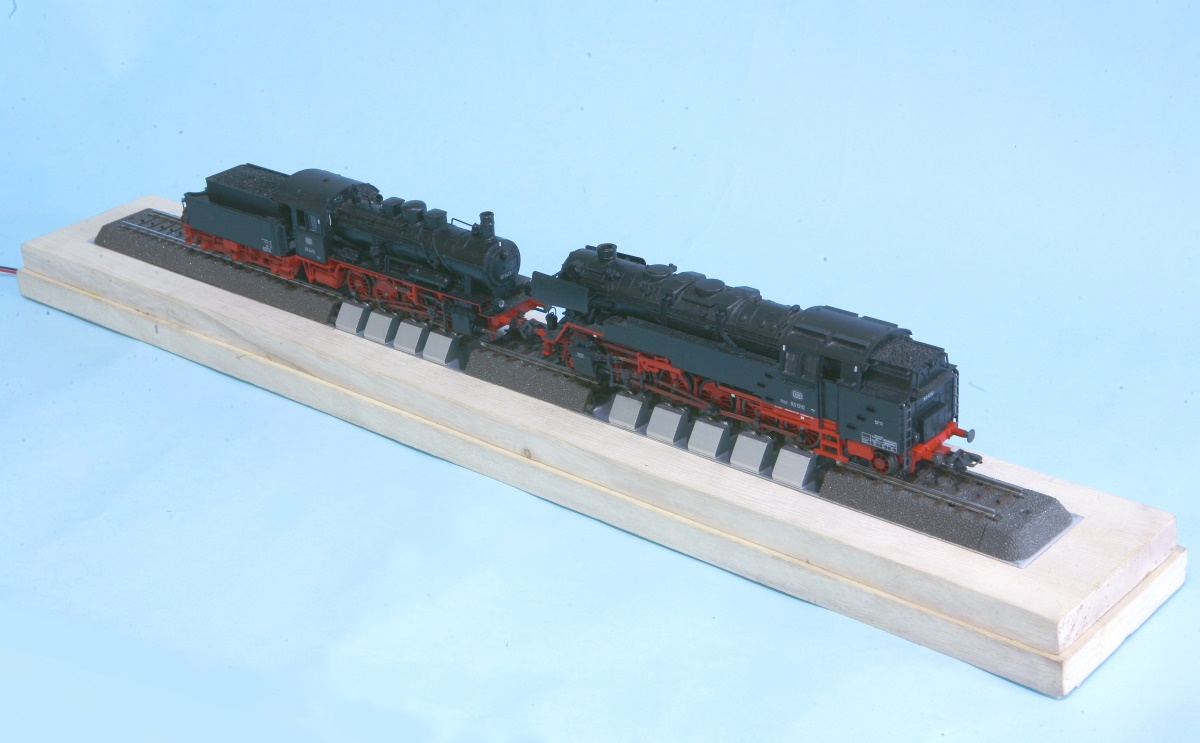

TRIX BR55 and BR85 two locomotives run on the RailStand HO5208 with DCC.
|
|
 |
TRIX New York light Mikado run on the RailStand HO3804 with DCC.
|
|
|
TRIX Union Pacific Big Boy run on the RailStand HO5208 with DCC.
|
|
|
TRIX Union Pacific Big Boy run on the RailStand HO5208 with DCC.
|
|
|
TRIX BR85 2-10-2 run on the RailStand HO3804 with DCC.
|
|
 |
ROCO SBB Be4/6 run on the RailStand HO3804.
|
|
|
ROCO SBB Be4/6 run on the RailStand HO3804 roller test stand with wooden stand and cover.
|
|
.
