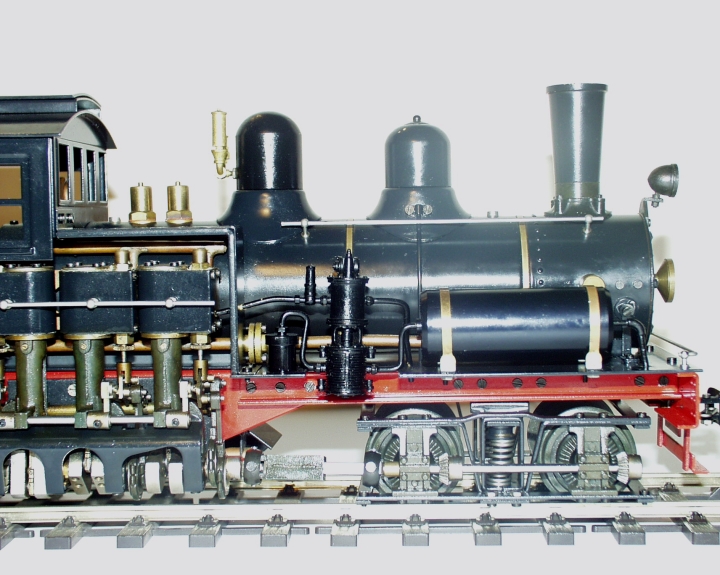

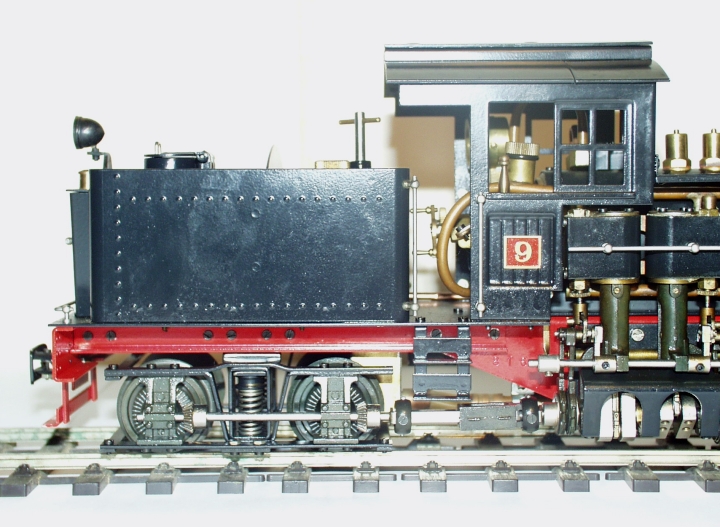

Aster 1975 年製台灣阿里登山車, 現已不多見, 以蒸氣為動力, 只是與現有的26號的煙囪, Tender 等差很多, 這款是 Lima最初的的原型車嗎? 台灣的阿里山火車再後來有做大幅度修改.
阿里山蒸汽火車簡介:
黑色精靈阿里山蒸汽火車，直立式汽缸及傘形齒輪傳動機構，不知風靡多少人群。這是由美國 LIMA公司製造的，其特殊的設計是為了克服行駛載運木材的火車在山地鐵路上行駛時所遇到的種種問題如：打滑、停車時會滑動等而設計的。
28噸Shay蒸汽機關車:行駛於阿里山森林鐵路全線，是蒸機時代的主力。
原有編號：21~32
現有編號：21,22,23,24,25,26,28,29,31,32
28噸蒸汽機關車簡介
空 重: 21.5噸
火箱傳熱面積: 4.41平方公尺
整備重量: 28噸
煙管傳熱面積: 32.5平方公尺
輪 距: 1269公釐
爐篦面積: 1.07平方公尺
煞車系統: 美國西屋ET-6型
牽引噸數: 140噸
水櫃容量: 2090公升
動輪直徑: 698公釐
鍋爐壓力: 11.3公斤/平方公尺
最高時速: 上山11公里,下山14公里
煤裝載量: 3.11立方公尺
鍋爐中線高: 1691公釐
汽 缸 數: 3個﹝直徑205x衝程254﹞公釐
車體尺寸: L9860mm x W1955mm x H3090mm
Aster 工廠文件規格:
Aster Shay Geared Class B - 2 Truck Specifications
Made in 1975 by Aster
The Geared Logging Locomotive was born of a growing and all-the year round need for timber in the 1870's. Ephraim Shay invented the geared locomotive with a vertical engine, since ordinary steam locomotives were incapable of running on rough and crooked tracks in mountainous areas. The Shay was the first geared logging engine and became the most popular form of haulage during the 1920. Due to the use of powered trucks, moving at a very slow speed, the Shay could easily negotiate rough track, sharp curves, and steep grades. Shay Geared Locomotives continued in use well into the age of Diesels. The prototype of this shay modeled by Aster replicates a locomotive Lima working on the Alisan Railroad in Taiwan.
Specifications
Scale, Gauge: 1.22.5, 45 mm
Net Weight: 3.4 kg
Length: 435 mm
Width: 97 mm
Height: 143 mm
Wheel Arrangement: BB (0-4-0 + 0-4-0)
Drivers: Diameter 30 mm
Gear Ratio: 2:1
Valve Gear: Stephenson Type

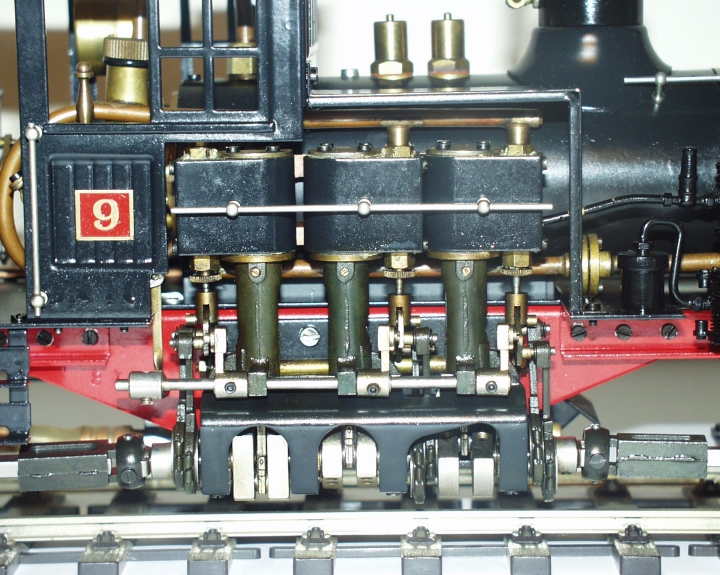

Cylinders: Three Vertical Cylinders, Bore 8.5 mm x Stroke 10 mm

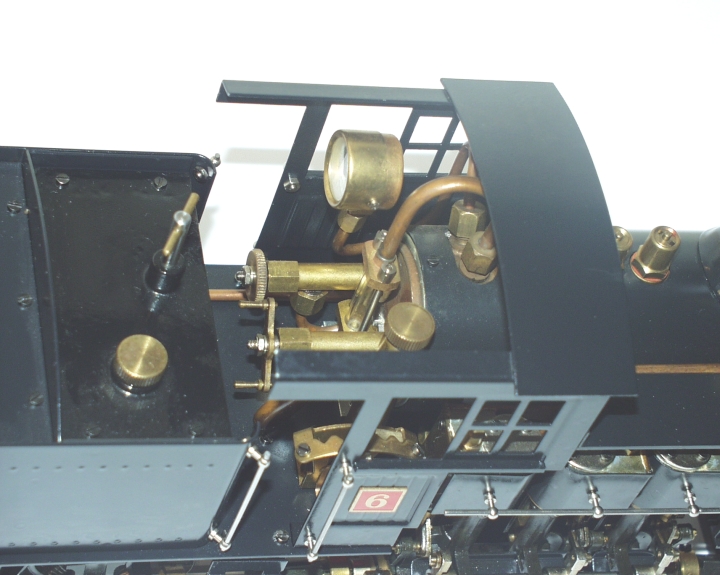

Boiler Type: Pot Type Boiler (cased)
Capacity: 140 ml.
Fittings: Safety Valves x 2, Regulator, Blower Valve, Check Valve, Pressure Gauge, Water Gauge
Lubricator: Roscoe Displacement Type
Fuel: Methylated Alcohol
Burner: Alcohol Burner with Three Wick Tubes
Fuel Tank: Capacity 75 ml
Water Tank Capacity: 160 ml.
Pump: Water Feed Hand Pump, Bore 10 mm x Ram Stroke 16 mm |
