圖片軌距產品型號產品簡介參考價　　

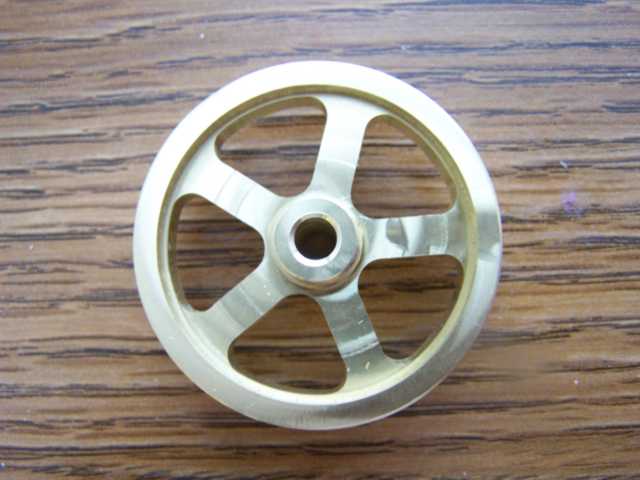

BFLY1 Brass 1-3/4" Machined Spoke Flywheel, 1 3/4" diameter machined brass spoked flywheel for TVR1A, VR1A or SC1A.
Call

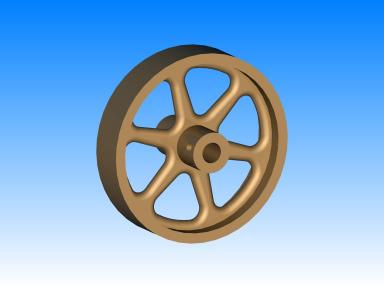

BFLY2 BFLY2 1-3/4" Tapered, rounded 6 spoke flywheel
1 3/4" diameter, tapered, rounded 6 spoke brass flywheel that accepts a 3/16" diameter shaft. Call

HM1 The GAGE HM1 steam engine kit is a double-acting, single cylinder, non-reversing steam engine. The HM1 is constructed from aluminum, brass and steel. The kit contains a detailed instruction manual, all parts fully machined and all necessary hardware, including brass hex-head bolts for all visible hardware. A "spin-tight" wrench is also included to install the brass hex-head screws.

Bore = .344"
Stroke = .500"
Weight = 3-3/4 ounces
5 to 35 psi steam or air operating pressure
Shaft diameter = .125" 4800 現貨

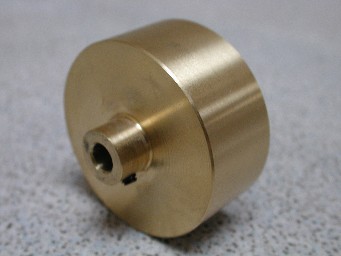

MFLY MFLY Brass Marine Flywheel
1 3/8" diameter brass marine flywheel for TVR1A, VR1A or SC1A.
Call

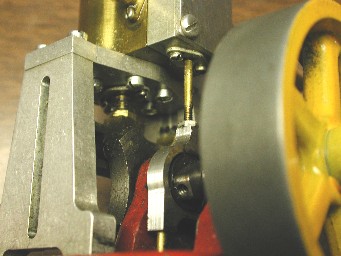

SC1A Single cylinder Scotch yoke, ready to assemble steam engine kit. 4990 現貨

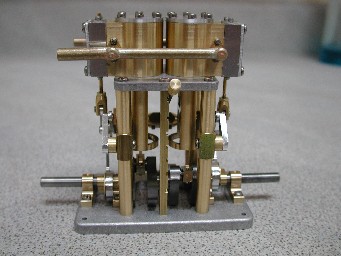

TVR1A The GAGE TVR1A is a twin cylinder, reversing steam engine with a 1/2" bore and 5/8" stroke. The crankpins are set at 90 degrees apart so the engine is self-starting at any position of the crankshaft. A Hackworth reversing gear is used to provide the reversing operation and is easily adapted to radio control. 12000

VR1A The GAGE VR1A is a double-acting, reversible engine, suitable for operation on 5 to 30 psi steam or air. The classic "Stephenson" reversing gear using two eccentrics and lots of linkage provides plenty of visible action when the engine is running, especially at a "tick over" speed of two or three hundred RPM. With a high end of over 4000 RPM, everything becomes an impressive blurr. A "D" slide valve, driven by the reversing gear, provides smooth steam distribution to the 1/2" bore and 5/8" stroke double-acting cylinder. The crosshead is a trunk type. A heavy 1 3/4" flywheel (included) provides low speed operation.

The VR1A is completely machined and ready for assembly. The only hand tools required are a small set of screwdrivers and a small flat file. The kit contains all of the parts completely machined and all of the necessary hardware needed to build an engine that is ready to hook up to your boiler or air supply. The detailed instruction manual contains assembly, adjustment and operating instructions as well as assembly drawings. 6400 現貨

產品共7項, 目前在1頁/共1頁

1

PS1: 表2024年度新產品.

PS2: 因產品眾多無法逐一陳列, 如有疏漏, 歡迎 Email sales@trains.com.tw 或來電:(02)2532-2350 洽詢 , 我們會很快給您回覆.
